CG数据库 >> Csimsoft Trelis Pro 16.5.2 x64

Trelis 是高端的FEA和CFD前处理商业软件,由csimsoft公司出品,基于桑迪亚国家实验室开发的Cubit™。

二十多年来,csimsoft公司与Sandia国家实验室共同开发Cubit,同时是软件用于学术或商业用途的的授权经销商。

名称的更迭Csimsoft与桑迪亚国家实验室以Cubit为研究平台改善并开发新的网格生成算法已有二十余年。

在2010年,csimsoft公司开始转换Cubit研发平台为可公开的商业化的预处理器。

至2017年, csimsoft 发布Cubit的公开商业版本Trelis 16.

File Size: 203.7 MBTrelis is csimsoft’s high-end commercial pre-processor for FEA and CFD, based on the time-proven CUBIT™ geometry preparation and mesh generation software from Sandia National Laboratories.

For more than two decades, csimsoft and Sandia has developed CUBIT software.

Now, csimsoft is Sandia’s authorized distributor for academic and commercial use.

Trelis 14.

0 raises the standard for FEA and CFD pre-processing.

Companies worldwide realize how critical mesh generation is to FEA and CFD analysis.

With Trelis FEA and Trelis CFD, users have specific tools for generating great meshes for either FEA or CFD solvers.

Here’s why people are talking about Trelis.

Trelis features:Trelis raises the standard for FEA and CFD pre-processing.

Companies worldwide realize how critical mesh generation is to FEA and CFD analysis.

Our customers use Trelis to get high-quality meshes that give them the very best results.

Here are some of the reasons why people are using Trelis for challenging simulation.

ITEM WizardImmersive Topology Environment for Meshing (ITEM) is a wizard-like tool that walks users through the meshing process. It uses Trelis's power tools for easy geometry cleanup and for generating the best possible mesh. The ITEM process includes:Import/Create GeometrySetup Mesh ParametersPrepare GeometryMesh the ModelValidate Mesh QualityDefine Boundary ConditionsExport the MeshITEM Watch the video on how to use ITEMGeometry CreationEngineers spend up to 65% or more of their time preparing geometry for meshing.

Trelis has powerful tools for easier clean up and defeaturing so that you can spend more time with the results.

There are three primary ways of creating geometry for meshing in Trelis.

Geometry primitives for building models"Bottom up" geometry from vertex, curves, and surfacesCAD files imported from another applicationTrelis supports many common CAD formats.

See Trelis Data Translators for more information about supported file formats.

Geometry TransformsGeometric entities can be modified in Trelis using transform operations, which include align, copy, move, reflect, restore, rotate, and scale.

Boolean OperationsTrelis supports powerful boolean operations to intersect, subtract, and unite geometric entities.

DecompositionGeometry decomposition is often required to generate an all-hexahedral mesh for three-dimensional solids.

"Web cutting" is cutting an existing body into two or more pieces through the use of a cutting tool.

Trelis has several methods for making web cuts.

ITEM Watch our tutorials and vidoes on using Trelis's tool to decompose models for meshing.

Cleanup and DefeaturingSometimes models imported from a CAD program will either provide too much detail for mesh generation or the geometry is deficient.

This can be corrected by making changes to the model.

Trelis has excellent tools for cleanup and defeaturing including.

HealingTweaking GeometryRemoving Geometric FeaturesAutomatic Geometry Clean-upRegularizing GeometryFinding Surface OverlapValidating GeometryDebugging GeometryTrimming and Extending CurvesStitching Sheet BodiesDefeaturing Tool.and many morePower ToolsTrelis's Power Tools help users to identify problems with geometry before meshing and recommend solutions for getting it ready for meshing.

After a mesh is generated, additional Power Tools check the mesh quality based on various metrics and values the user specifies.

Geometry TreeDiagnose GeometryDefeature GeometryDiagnose MeshabilityDiagnose Mesh QualityITEMand more.

.

.

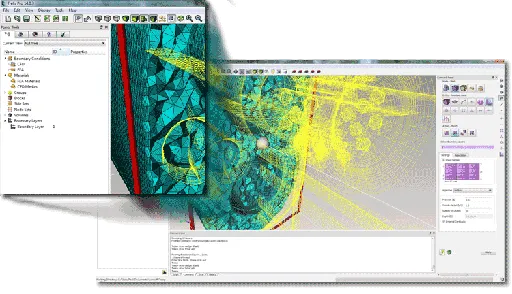

Csimsoft Trelis Pro 16.5.2 x64的图片1
