新版本的Camnetics Suite 2013软件套装,给 SolidWorks, Solid Edge and AutoDesk Inventor使用设计师们提供了更高阶的工具和功能集成。其中包含CamTrax、CamTrax64和GearTrax。

CamTrax64帮助设计者创建动态运动控制参数,能够满足几乎每一个凸轮型实体模型系统要求。在设计时,CamTrax64能够联系Excel数据生成图表,并增加了一个配置文件清单到您的绘图中。

GearTrax是一个可以方便地设计实体齿轮的SolidWorks插件,主要用于精确齿轮的自动设计和齿轮副的设计,通过指定齿轮类型、齿轮的模数和齿数、压力角以及其它相关参数,GearTrax可以自动生成具有精确齿形的齿轮。为工程师提供了一种简单易用的、在SolidWorks内部就可完成的驱动零件实体造型工具。可以设计的齿轮类型包括直齿轮、斜齿轮、锥齿轮、链轮、渐开线齿形、带齿轮、蜗轮蜗杆、花键、V带轮等。

New version Camnetics Suite 2013, add-on for SolidWorks, Solid Edge and AutoDesk Inventor, provides advanced tools and advanced features for designers.

CamTrax standard cam types include cylindrical cams, plate (aka disk) cams and linear cams. Choose the follower type that the design requires; on center translating, off center translating, swinging arm and flat-faced reciprocating. Selecting different motion synthesis is a snap with CamTrax. Choose between virtually any standard cam motion with a couple mouse clicks. With Excel the designer can analyze the cam motions and compare different motion synthesis. Don't have Excel? Output can also be to a text file! Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

CamTrax64 standard cam types include cylindrical cams, plate (aka disk) cams and linear cams. Choose the follower type that the design requires; on center translating, off center translating and oscillating (swinging arm). Selecting different motion synthesis is a snap with CamTrax64. Choose between virtually any standard cam motion with a couple mouse clicks. With Excel the designer can analyze the cam motions and compare different motion synthesis. Don't have Excel? Output can also be to a text file! Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

GearTrax provides the designer with an easy to use tool for creating solid models of drive components. Create spur, helical, straight bevel and involute splines with true involute tooth profiles.

GearTrax is intuitively easy to use for the designer with limited gear experience yet powerful enough for the gear expert. The animation window shows the spur/helical gear mesh which updates as the data is changed. It is extremely useful in understanding how changes to the gear parameters reflects on the gear mesh.

Camnetics, Inc.

Camnetics has been a SolidWorks Solution Partner since 1998.

"The GearTrax product perfectly leverages the parametric power of SolidWorks. By providing this type of powerful yet intuitive design tool, partners like Camnetics are enabling our customers to wring even more productivity out of their SolidWorks investment. " - Robert McGill, Manager, SolidWorks Partner program manager.

☉本站会员发布的资源均来自网络。

☉本站对该资源不拥有所有权,所有权归版权方所有。

☉本资源仅供学习研究之用,请24小时内删除,不得用于商业,如用于商业用途,请购买正版。

☉如无意中侵犯了您的权益,请及时联系我们。我们将及时删除相关链接。

http://urlxf.qq.com/?F32aUjz

或者

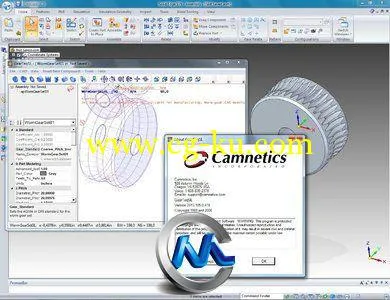

《齿轮凸轮设计插件套装2013》Camnetics Suite 2013的图片1

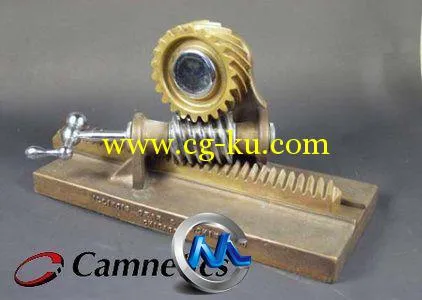

《齿轮凸轮设计插件套装2013》Camnetics Suite 2013的图片2

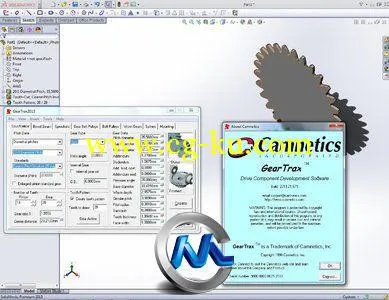

《齿轮凸轮设计插件套装2013》Camnetics Suite 2013的图片3
