ncplot是一款刀具路径模拟软件,适用于数控机床的预先程序编制,验证程序的正确性,防止在上机操作时出错.

NCPlot 2.32 | 6.6 MB

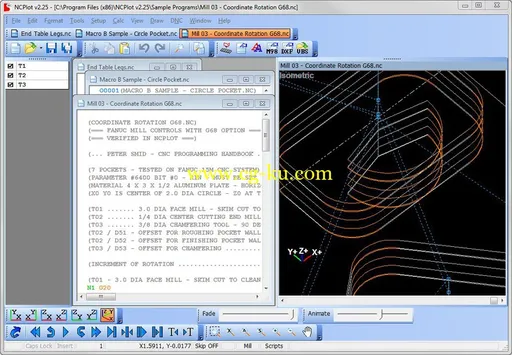

NCPlot is an editor and backplotter for 4 axis mill and 2 axis lathe G-Code programs. This software combines editing, formatting and translation tools that are useful for CNC programmers with a backplotter for instant G-Code verification.

Full featured text editor

Multiple document interface allows you to open and edit multiple programs at the same time

Unlimited undo/redo

Cut, Copy and Paste

Find and replace

Font and color settings may be applied to any part of the program

Program coloring improves readability

File comparison tool helps you keep your programs up to date

Program formatting tools

Remove block numbers, blank lines, comments or spaces

Program renumbering with automatic updating of:

Macro GOTO references

M99 P_ references

M98 H_ references (for controls that support this)

M97 P_ references (for HAAS style subprograms)

Lathe G70 - G73 "Q" and "P" addresses

Insert spaces between letter addresses and macro keywords

Fix invalid end of line characters

Convert programs to all caps

Add or remove comment or block skip characters

Flexible viewport control

A wide assortment of plot controls lets you quickly find any mistakes in your program

7 view modes for Mill and 4 for Lathe

Dynamic zoom, rotate and pan

Supports 3Dconnexion devices such as the SpaceNavigator™, SpacePilot™ and SpaceExplorer™

Animate, step forward or step backward

Draw to the cursor, from the cursor or just the selected portion of the program

Clicking an entity on the viewport will display the entity properties and highlight the associated block in the program

View fade control makes tool movements stand out by "dimming" other tool motions

DXF importing / exporting

Import DXF drawings to quickly create G-Code for both Mill and Lathe

Any backplot can be saved as a DXF drawing file for loading back into a CAD or CAM system

OS : Windows® 2000, XP, Vista, Windows® 7 or Windows® 8 (32 and 64 bit OS supported)

Language : English
