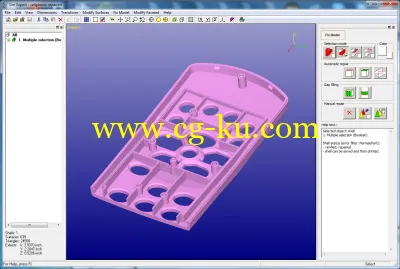

DeskArtes Sim Expert 10.2.0.19 (x86/x64)的图片1

DeskArtes Sim Expert 3D几何处理解决方案,目标是仿真软件产品的用户,Sim Expert可以有效的减少三角形数量以及三角形的高宽比改进,更快更准确的模拟结果与金属和塑料成型模拟。

DeskArtes Sim Expert 10.2.0.19 (x86/x64) | 103/111 Mb

Sim Expert is a dedicated tool for preparing 3D models for Simulation applications with triangle count reduction and triangle aspect ratio improvement functions. DeskArtes Expert Series STL model repair technology is fully available with Sim Expert to prepare faceted models for accurate simulation.

Reduce triangle count for faster simulation.

Sim Expert fast triangle decimation functions allow you to prepare 3D faceted files for any simulation system. Detailed user control over the reduction process enable you to get the optimal result for your simulation software while keeping the 3D model shape.

Improve triangle aspect ratio for more accurate simulation results.

Sim Expert commands can effectively remove thin triangles from the faceted data. Triangle refine, reduce and smoothing functions allow you to prepare all models, from CAD systems to scanned data, for accurate simulation.

Sim Expert is supported on Windows XP/Vista/7.

Repair faceted 3D models

Sim Expert offers effective and user friendly repair tools for triangulated models. Models from different CAD systems, with or without colors, can be effectively repaired using both automatic and manual commands for simulation.

Input various faceted models: STL, VRML, ZPR, OBJ, DXF, PLY, 3DS, Collada, FBX and proprietary 3DE Files.

Output following faceted models: STL, VRML, ZPR, DXF, PLY and 3DE Files.

Repair errors automatically: separate shells, orient normals, stitch gaps, fill holes and remove error triangles.

Manual repair with full editing capability for faceted models.

Remove triangles, surfaces or shells manually.

Re-triangulate faceted models

Sim Experts fast triangle decimation and aspect ratio improving functions allow you to prepare 3D faceted files for any simulation system effectively. Detailed user control over the reduction results guarantee the optimal simulation result. Triangle refine, reduce and smoothing functions allow you to prepare sparsely triangulated models from CAD systems to scanned data for accurate simulation or manufacturing.

Reduce triangle count for faster simulation.

Reshape triangles to improve aspect ratio.

Smooth too sparsely triangulated data for accurate 3D Printing results.

Smooth scanned data for Additive Manufacturing.

Advanced cutting functions

Medical and engineering processes may require very specific tools to cut models or to drill holes for fixtures or connectors. Cut and Hole Tools available with Sim Expert enable most delicate Boolean operations with user defined surfaces even with complex model geometries.

Cutting medical model

Cut models for medical and engineering purposes.

Define any number of cutting surfaces, scale to exact cut operation.

Drill accurate holes to models, add plugs.

Set drill hole depths easily with sliders.

Connect multi component parts into one printable part with Boolean commands.

Convert surface models into STL data

If you are running a service bureau, you may receive 3D CAD models from several sources in various formats. Optional surface formats with Sim Expert allow you to input surface files from most CAD system in their proprietary file format or standard formats. Surface models can be triangulated accurately according to user defined parameters to suite your process needs.

IGES file

Input various surface models, like IGES, VDA, Catia, Creo/ProE, Solidworks, STEP and UG.

Accurately convert your surface models to solid STL.

Automatically fill gaps, remove overlaps and fix trimming errors.

The best triangulation accuracy in the market.

Sim Expert Offers:

Sim Expert

Faster display list generation and texture handling

Improved topology generation for architectural models

Sort Model Tree for more effective model repair and data organization

Clean Surfaces to remove small surfaces and simplify model surface structure

64 bit implementation improvements to handle millions of triangles

Communication

Print and Email Images and 3D Geometry with Annotations and Measures

Input STL, VRML, ZPR, OBJ, DXF, PLY, 3DS, Collada, FBX and 3DE Files

Write STL, VRML, ZPR, PLY and 3DE Files

Model Editing

Cut, Copy and Paste 3D Data

Multiply models for manufacturing

Advanced Selection and Replace tools for Model Repair

Create and Run Macros for Effective Model Repair

Workflow and Tools Window to Access Mostly Used Repair and Manipulation commands

Intuitive Menu Structure to Support the Workflow

Help Text window to Aid in the Repair Process

Different Error Filtering Levels for Repairing Models for Simulation vs. 3D Printing

3D Viewing, Transformations and Measuring

Viewing with Colors, Textures and Clipping

Transformations to Scale, Position, Rotate, Mirror & Platform positioning

Change units for STL models

Generate professional 2D Drawings from STL data

Point value, Distances, Angle, Radius and Wall Thickness Measuring

Surface Triangulation

Conversion of IGES and other Surface models to STL with Full Control of Resolution

Available with Optional input formats: IGES, Catia, Creo/ProE, Solidworks, STEP and UG

Re-trim and Manipulate Surface data to minimize errors

Full Faceted Model Repair

STL Model Verification and Automatic Repair

Automatic Self -Intersection Removal

Advanced Error Location for Manual Repair

Triangle Mesh Editing with Triangle Delete, Add, Gap Bridging, Point addition and Area Triangulation

Normal Manipulation for Shells, Surfaces and Triangles

Model Complexity Reduction for faster visualization and memory utilization

Faceted Model Modification

Flexible Boolean Functions and Multiple Join Functions

Advanced Cut and Hole Tool for Cutting and Drilling

Hole Tool for Adding User Defined Holes and Tapered Plugs

Reduce and Refine commands for Improving Triangle Shapes for Simulation

Smooth Models for Improved Surface quality

Check Draft Angle for Mold generation

Online Help

Extensive Online Help

Tutorials and Advanced Model Manipulation Lessons

Reliable Network and Standalone Licensing System

Optional IGES / VDA-FS translator

View & Verify IGES / VDA-FS files

Conversion of IGES / VDA-FS to STL with Full Control of Resolution

Automatic Detection of Duplicate and Missing Surfaces

Trimming Surfaces with Curves and Other Surfaces

Automatic normal orientation, Output of Cleaned IGES files

File Conversion between IGES and VDA-FS Formats

Optional CATIA 4 translator

Input CATIA 4 Files

Optional CATIA 5 translator

Input CATIA 5 Files

Optional CATIA 6 translator

Input CATIA 6 Files

Optional Creo/ProE translator

Input Creo/ProE Files

Optional Solidworks translator

Input Solidworks Files

Optional STEP translator

Input STEP Files

Optional Unigraphics translator

Input Unigraphics Files
