协同开放的虚拟样机平台制造业虚拟样机解决方案的先驱和全球领导者ESI集团宣布发布Visual-Environment 8.0新版本。该版本为通用运行平台提供灵活开放的工程架构,处理多领域仿真。Visual-Environment包括全部计算机辅助工程(CAE)的流程,从CAD模型接口、模型安装到后处理,所有应用都使用同一个计算模型。 西班牙汽车工业设计制造集团Grupo Antolin,座椅业务部仿真经理Franck Chantegret如此评价Visual-Environment的新版本:“Grupo Antolin应用Visual-Environment为汽车座椅虚拟样机进行前/后处理。软件新版本在任务自动化、精确的安全工具方面的加强与我们的需求相吻合,而且易于操作的数据导出以及后处理自动化为我们每个仿真环节节省了50%的时间。” 本次发布的新版本Visual-Environment 在软件应用性能上做出了重大的改进,通过将前/后处理可视化的集成在环境中,改善了用户体验。综观该版本,软件提供更美观,更友好,更通用的图形交互界面和页面管理功能,提高图形处理的平滑性,提供完美的工作流。 越来越多直观的用户界面将为用户提供更多的交互功能。例如,用户可以在主页通过快捷图标进入最常用的操作、最近加载的文件和最有用的快速链接(如软件强调和在线社交网络等)。 作为不断改进的平台,Visual-Environment不断适应对多学科、多求解器、多行业仿真的需要。对于基于Visual-Environment的每种应用,工程人员都可以使用综合建模工具Visual-Mesh来生成复杂的几何图形和可用于仿真运算的多学科有限元网格图形,执行包括车辆碰撞测试、乘客安全性、NVH、热处理、焊接、铸造以及电磁兼容等仿真分析。借助集成软件开发工具Visual-SDK为开放式架构提供的用户定制的模板和宏命令,Visual-Viewer后处理工具通过多页多图环境满足CAE群体的各种复杂需要。 作为端对端的决策支持系统,Visual-Environment平台下的VisualDSS通过传递迭代模型的变更实现设计方案的变更管理功能。在Visual-Environment 新版本中,用户可以直接创建工作流,上传关键结果和报告,通过VisualDSS客户端在线比较迭代模型。 多学科接口ESI的Visual-Environment是一套复杂的系统,所有应用程序可以独立更新。Visual-Environment也是一个开放的系统,7.5版本引以为荣的增强转换工具帮助实现第三方软件的数据集成。此外,新版本还对可视化效果进行了优化,例如,借助全新的Sim-Folder工具对于无网格仿真理论的SPH和有限点理论(FPM)的显示性能,以及可视化气囊折叠的显示进行了优化。对热处理完整的支持使Visual-Weld实现对制造过程热处理的仿真。 改进的网格功能加强了对NVH和内噪声的应用,大大简化了孔洞的网格划分。应用于铸造领域的网格前后处理环境Visual-Cast提供使用CAD拓扑结构的模型配置功能,支持迭代模型的自动更新以及传递重要的时间收益。 Visual-Environment 将工程知识、优化范例、工艺流程、工作流管理以及仿真内容管理包含在工程设计过程当中。

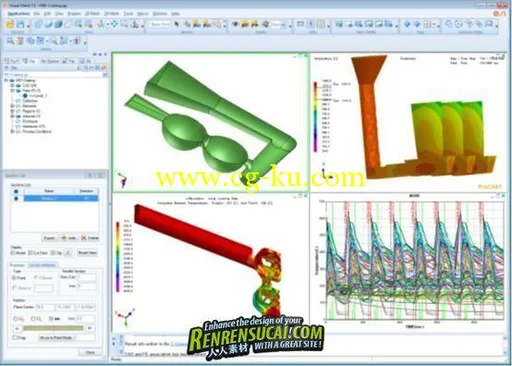

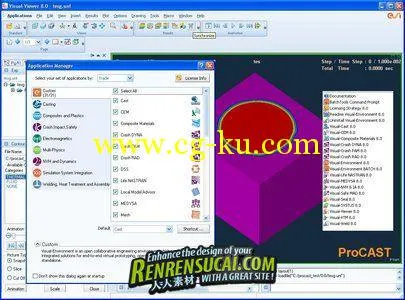

图为Visual-Environment的铸造仿真解决方案

ESI Group, pioneer and world-leading solution provider in virtual prototyping for manufacturing industries, announces the release of Visual-Environment 8.0, a flexible and open engineering framework within a common platform, addressing multiple simulation domains. Visual-Environment encompasses the entire Computer-Aided Engineering (CAE) process, from interfacing with Computer-Aided Design (CAD) to model set-up and post processing; all using a single core compute model.

ESI Group, pioneer and world-leading solution provider in virtual prototyping for manufacturing industries, announces the release of Visual-Environment 8.0, a flexible and open engineering framework within a common platform, addressing multiple simulation domains. Visual-Environment encompasses the entire Computer-Aided Engineering (CAE) process, from interfacing with Computer-Aided Design (CAD) to model set-up and post processing; all using a single core compute model.

Visual-Environment-an integrated suite of pre-and post-processor that can work simultaneously or individually in a shared environment of other products ESI Groupe

Visual-Mesh is a complete meshing tool which supports CAD Import, 2D and 3D Meshing and Editing features. Some of the features which work on 'mesh only' will be available in Visual-Crash PAM context.

Visual-Crash PAM (VCP), which is one of the contexts in Visual-Environment, provides PAM-CRASH users with fast iteration and rapid model revision process, from data input to visualization for crashworthiness simulation and design. This environment provides quick model browsing, advanced mesh editing capabilities and rapid graphical assembly of system models. VCP allows graphical creation, modification and deletion of contacts, materials, constraints, control cards and all crash entities. In VCP, you are provided with tools for checking model quality and simulation parameters prior to launching calculations with the Solver. Using these tools helps in correcting errors and fine-tuning the model and simulation before submitting it to a solver, thus saving time and resources.

Visual-Safe is a context in Visual-Environment, dedicated to Safety utilities. High productivity tools such as advanced dummy positioning, seat morphing, belt fitting and airbag folding are provided in this context.

Visual-Safe MAD (VSM) is a complete, efficient and productive CAE environment for multi-body and finite element occupant safety simulations using Madymo. It utilizes the multi-window/multi-model/multi-application environment of Visual-Environment very efficiently. It provides complete flexibility of working for both the experienced and the novice Madymo users alike. It incorporates a vast database of customer requirements and feedback gathered over a decade.

Visual-Medysa guides PAM-MEDYSA 2G users in building system models for design optimization and performance validation of complex mechanical systems. Mechanical systems such as engine, tires, chassis, suspensions, and machinery transmissions, can be modeled with ease in this environment.

High Velocity Impact (HVI) simulation is used to analyze the dynamic behavior of materials under very high speed impacts. Visual-HVI supports PAM-SHOCK HVI user in modeling such material data easily. This typically finds applications in aerospace where we need to understand the damage suffered by a spacecraft when it encounters space debris, such as micro-meteoroids.

Visual-Viewer is the new generation Post Processing tool with state-of-art Plotting utility. This caters to the requirements of the CAE community. Visual-Viewer is built on the multi page / multiplot environment, which enables the user to group his data into pages and plots. Visual-Viewer is designed with intuitive and sleek user interface with Windows look and feel. Complete session can be re-run without loss of any data. Visual-Viewer is completely command driven which enables the user to execute commands at ease. Visual-Viewer is completely built on multi-page and multi-plot environment. The user has the freedom to create any number of pages and to have upto 16 windows in a single page. These windows can be plot, animation, video, model or drawing block windows. The entire snapshot of the product can be saved as a template and restored any time.

Visual-Process Executive's Process-oriented philosophy brings a compelling advantage to PAM-CRASH users to build processes quickly by customizing GUIs and to execute them.

Visual-Crash Dyna (VCD) provides advanced capability and fast-guided model building of LS-DYNA solver. Using Visual-Environment multi-window/multimodels/multi-application environment, with visual verification, complete model building activity can be performed efficiently.

Visual-Seal provides advanced capability and fast-guided model building of Seal model. Using the Visual-Environment multi-window/multi-model/multi-application environment, with visual verification, complete model-building activity can be performed efficiently.

Visual-Life Nastran (VLN) is a comprehensive, integrated environment for Nastran simulations with powerful enterprise capabilities. VLN is a 'high-performance' software to manage and assemble large and complex finite element system models for Nastran, NVH and durability analysis with its unique multi-window/multi model environment providing high productivity with powerful visualization and model browsing.

Visual-Crash Rad (VCR) (Beta) provides advanced capability and fast-guided model building of RADIOSS solver. Using Visual-Environment multi-window/multimodels/multi-application environment, with visual verification, complete model building activity can be performed efficiently.

About ESI Group

ESI is a pioneer and world-leading solution provider in virtual prototyping for manufacturing industries that takes into account the physics of materials. ESI has developed an extensive suite of coherent, industry-oriented applications to realistically simulate a product’s behavior during testing, to fine-tune manufacturing processes in accordance with desired product performance, and to evaluate the environment’s impact on performance. ESI’s solutions fit into a single collaborative and open environment for End-to-End Virtual Prototyping, thus eliminating the need for physical prototypes during product development. The company employs about 850 high-level specialists worldwide covering more than 30 countries. ESI Group is listed in compartment C of NYSE Euronext Paris.
