CG数据库 >> 《多物理场耦合分析软件4.3a升级包》Comsol Multiphysics 4.3a Update1(1Plus)

COMSOL Multiphysics V4.3a是为下一代技术创新的设计和优化而开发的功能强大的仿真工具。

4.3a版本中主要新功能

Excel®实时链接™

在Microsoft Excel中进行COMSOL建模。

疲劳模块

基于应力或应变来计算机械疲劳。

ECAD导入模块

导入ECAD布线,快速过滤单元、网和层等。

Solid Edge®实时链接™

与Solid Edge之间双向同步。

云计算

基于Amazon Elastic Compute Cloud™ (Amazon EC2™)云计算。

参数优化

基于几何模型进行参数优化。

高效CFD求解器

更优化的流体模拟。

快速多核和集群计算

更高速的并行计算。

Continuing its tradition of innovation that users have come to expect, COMSOL presents update1 version 4.3a of COMSOL Multiphysics, its flagship software for modeling and simulating physics-based systems.

With version 4.3a and in response to user requests, COMSOL introduces LiveLink for Excel to connect multiphysics results with spreadsheets. Version 4.3a also further extends the ability of engineers, scientists, and researchers to leverage multiphysics to design and optimize breakthrough products and technologies anywhere from the desktop to the cloud with new support for cluster computing on the Amazon Elastic Compute Cloud (Amazon EC2). New modules for analyzing fatigue and for importing ECAD files make their debut in Version 4.3a as does the new LiveLink for Solid Edge®, a CAD software from Siemens PLM Software. Additionally, every one of the more than 30 application-specific COMSOL add-on modules for mechanical, electrical, fluid, and chemical modeling and simulation sees major new upgrades.

- Improved handling of load cases for parametric sweeps.

- Corrected and improved handling of selections in the Report Generator.

- Grid ticks are now displayed correctly.

- Corrected problem that could occur when moving a solver node.

- Improved cluster performance and stability.

- The documentation root directory is now correctly updated.

- User-defined material libraries are now saved correctly in all cases.

- Corrected handling of empty values when using and HTML tags in titles and axis labels.

- Generating reports in Word format now works correctly on Mac and Linux.

- The Results window has been renamed to the Table window and dynamically displays the name of the current table.

- In the Analytic, Interpolation, and Piecewise functions' settings window, the Parameters section has been renamed to the Definition section.

- Periodic PDE constraints for vector elements now work in all space dimensions.

- It is now possible to remove all study nodes.

- uohm is now a valid syntax for microohm.

- Improved stability and user interface.

AC/DC Module

- Using the Transition boundary condition in the Magnetic Fields interface now works correctly when solving for the background field.

- Using power excitation in a Single-Turn Coil Domain now works correctly.

- Units are now displayed consistently in the Multi-Turn Coil Domain settings.

CFD Module

- Corrected the conservative form for the level set formulation in 2D-axisymmetry.

- The Laminar Inflow boundary condition no longer constrains the velocity to zero on the symmetry axis when solving for 2D-axisymmetry.

Chemical Reaction Engineering Module

- Corrected Turbulent Mixing in the Concentrated Species interface.

- The Periodic and Pair Conditions in the Concentrated Species interface now work correctly when using the Maxwell-Stefan diffusion model.

- Improved backward compatibility for the Reacting Flow interface when opening models created with a COMSOL version earlier than 4.3.

- Improved stability in the Reacting Flow and the Reaction Engineering interfaces.

- To add a CAPE-OPEN Interface node, right-click Global Definitions and select Functions>CAPE-OPEN Interface.

Heat Transfer Module

- The physics-induced mesh in the Non-Isothermal Flow interface now also accounts for interior walls.

- Improved convergence when using the Inflow Heat Flux boundary condition.

- Improved load group factor implementation for stabilization.

- Corrected total heat flux/source expression in 2D-axi geometries with moving frames.

- Renamed vapor mass fraction to omega_moist in order to avoid variable conflict with angular frequency (omega).

- The Viscous Heating feature now supports Swirl flow in 1D- and 2D-axisymmetry.

- Improved backward compatibility for models using a Line Heat Source.

- Thin conductive shell interface now works correctly for solving a time dependent study on a moving frame.

- Improved backward compatibility for models using crosswind diffusion.

MEMS Module

- Adding an Electric Shielding feature to a Piezoresistivity interface now works correctly.

- The Linear Buckling study step is now available in the MEMS Module.

Microfluidics Module

- Improved default solver suggestions when using the Free Molecular Flow interface.

RF Module

- Corrected handling of Periodic Conditions.

- The scattering boundary condition now works correctly also when the Electric displacement field model uses Polarization.

- Corrected expressions for PMLs used with 2.5D and with mode analysis.

- Microwave heating boundary mode analysis now supports eigenvalue transforms.

- Corrected electromagnetic loss expressions for eigenfrequency studies to be non-negative.

- Surface current density norm is now available in the postprocessing variables list.

Structural Mechanics Module

- Principal stresses evaluated at Gauss points now contain a unit.

- Corrected bending thermal strains in curved thick shells.

- Corrected cyclic symmetry in 2D with a common point for the sector boundaries.

LiveLink for Excel

- LiveLink for Excel now supports Excel 2007.

- Corrected background color when using software rendering.

- Entering numbers with a regional decimal separator is now supported.

- Improved postprocessing for 0D models.

- LiveLink for Excel now works on 64bit Japanese Windows.

- Corrected saving and loading to Excel files for layers in ECAD import and for parameter estimation.

- Improved stability and user interface.

COMSOL LiveLink for MATLAB

- Models using external functions are now portable between supported operating systems.

COMSOL LiveLink for Inventor

- Fixed “Failed to connect to Inventor. Please make sure Inventor is running” error that could occur when synchronizing.

COMSOL LiveLink for Solid Edge

- Values for linked dimensional parameters are now displayed correctly.

About COMSOL

COMSOL Multiphysics is a software environment for the modeling and simulation of any physics-based system. A particular strength is its ability to account for multiphysics phenomena. Optional modules add discipline-specific tools for mechanical, fluid, electromagnetics, and chemical simulations, as well as CAD interoperability. Founded in 1986, the company has U.S. offices in Burlington, MA, Los Angeles, CA, and Palo Alto, CA. International operations have grown to include offices in the Benelux countries, Denmark, Finland, France, Germany, India, Italy, Norway, Sweden, Switzerland, and the United Kingdom. Independent distributors of COMSOL Multiphysics are located in Australia, China, Egypt, Greece, Hungary, Israel, Japan, Korea, Malaysia, Poland, South Africa, the Czech Republic, Spain, Taiwan, and Turkey.

☉本站会员发布的资源均来自网络。

☉本站对该资源不拥有所有权,所有权归版权方所有。

☉本软件仅供学习研究之用,不得用于商业,如用于商业用途,请购买正版。

☉如无意中侵犯了您的权益,请及时联系我们。我们将及时做出更正。

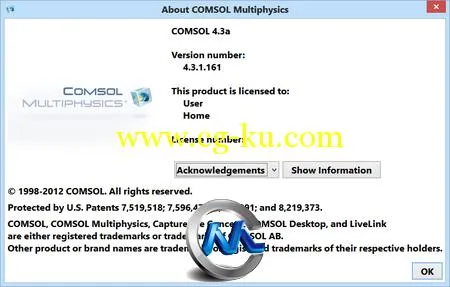

《多物理场耦合分析软件4.3a升级包》Comsol Multiphysics 4.3a Update1(1Plus)的图片1

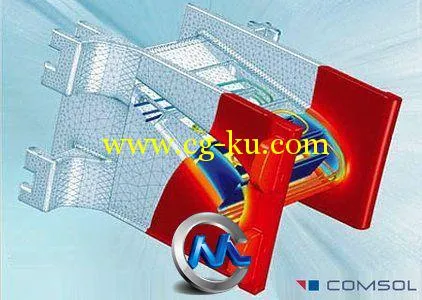

《多物理场耦合分析软件4.3a升级包》Comsol Multiphysics 4.3a Update1(1Plus)的图片2
